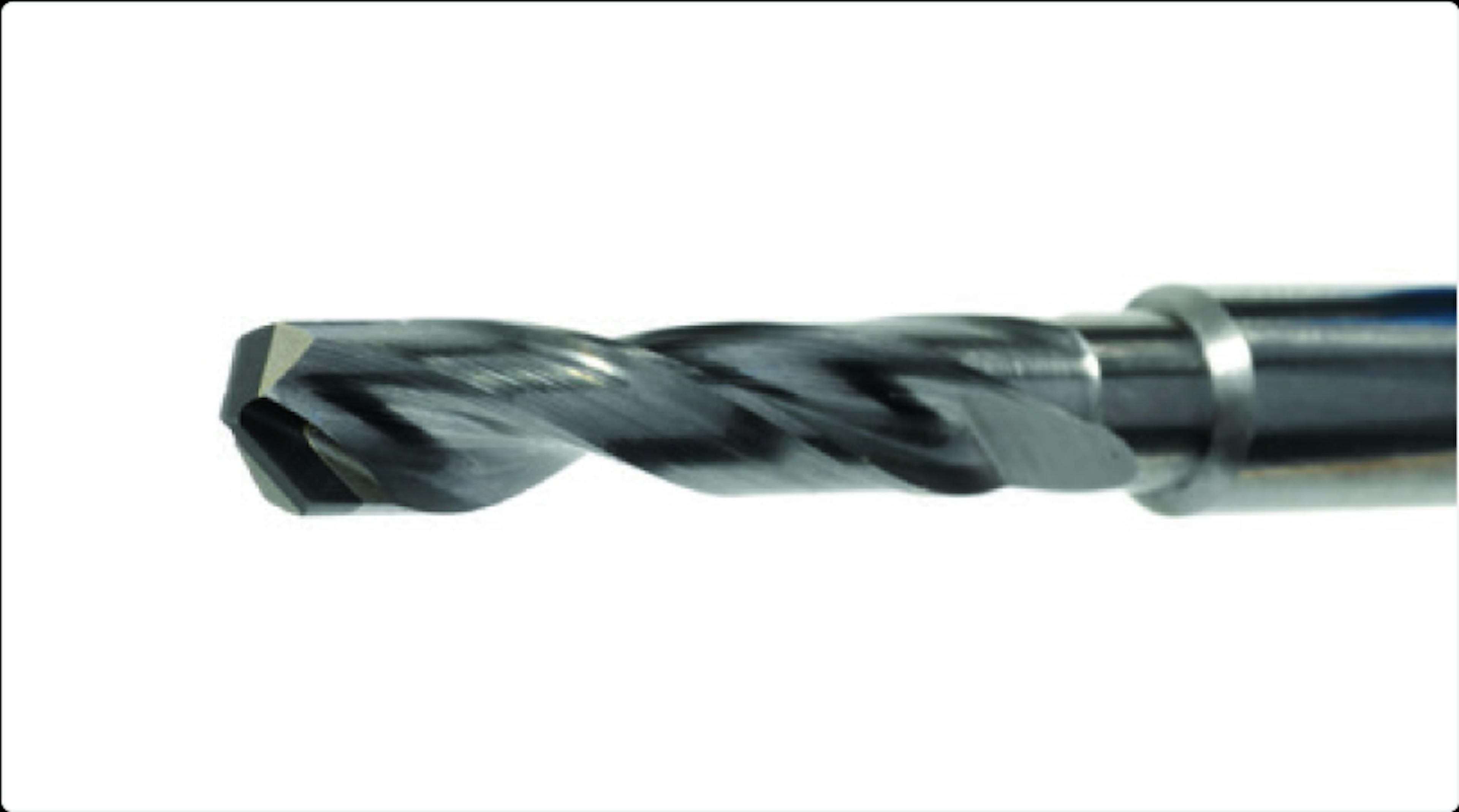

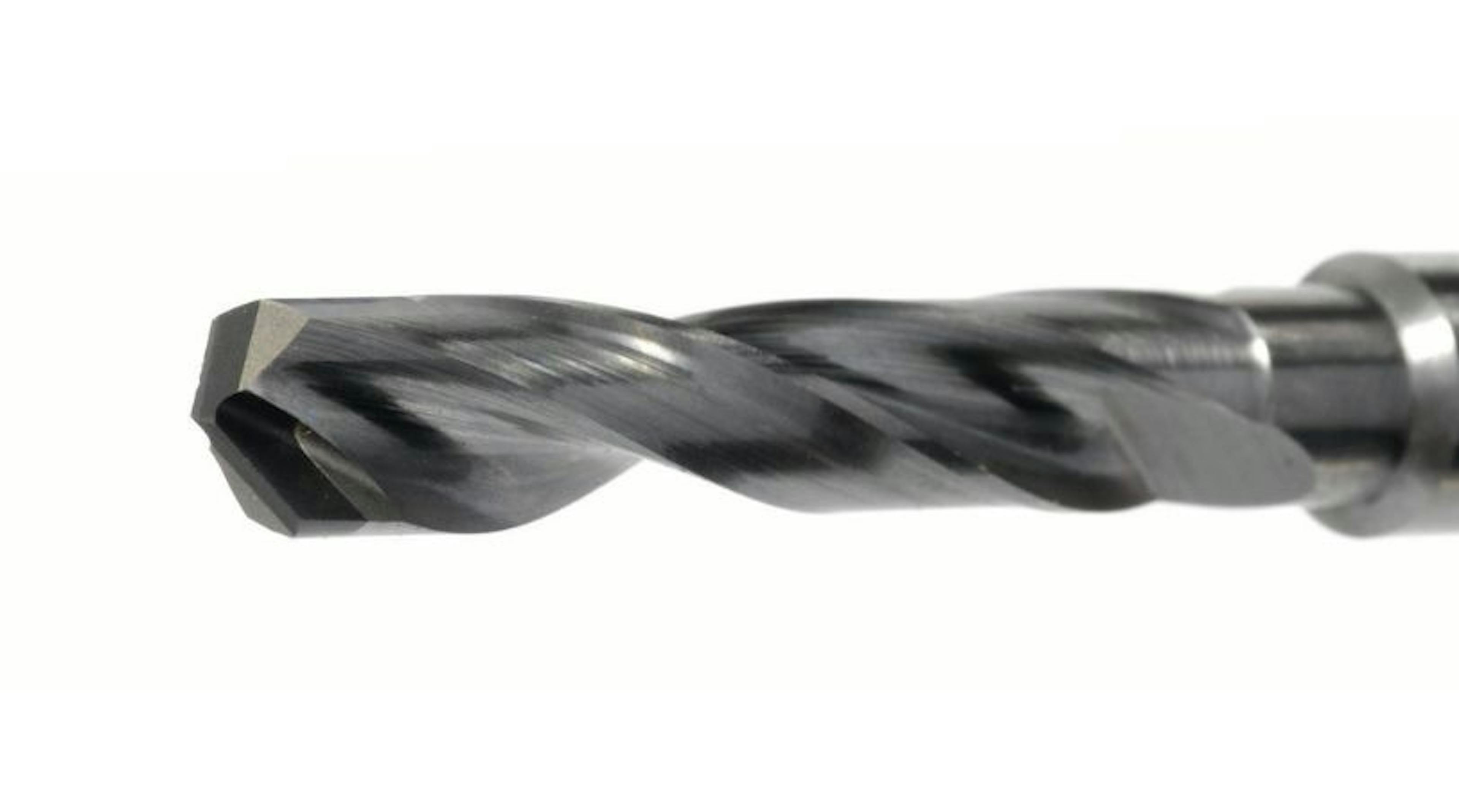

The Exactaform PCD Standard Point Drill is an innovative alternative to traditional Aerospace drills. Whether you need a standard point angle for drilling CFRP, or you're working with composite or MMC materials, this drill is an ideal choice.
| PART NO. | DIA | FLUTE LENGTH | SHANK DIA | O/All |
| 10023 | 3/16" | 30 | 6h 6 | 100 |
| 10024 | 5mm | 30 | 6h 6 | 100 |
| 10025 | ¼” | 30 | 8h 6 | 100 |
| 10026 | 6mm | 30 | 8h 6 | 100 |
| 10027 | 5/16" | 40 | 10h 6 | 100 |
| 10028 | 8mm | 40 | 10h 6 | 100 |
All drill tolerance: +0.00/-0.010mm
