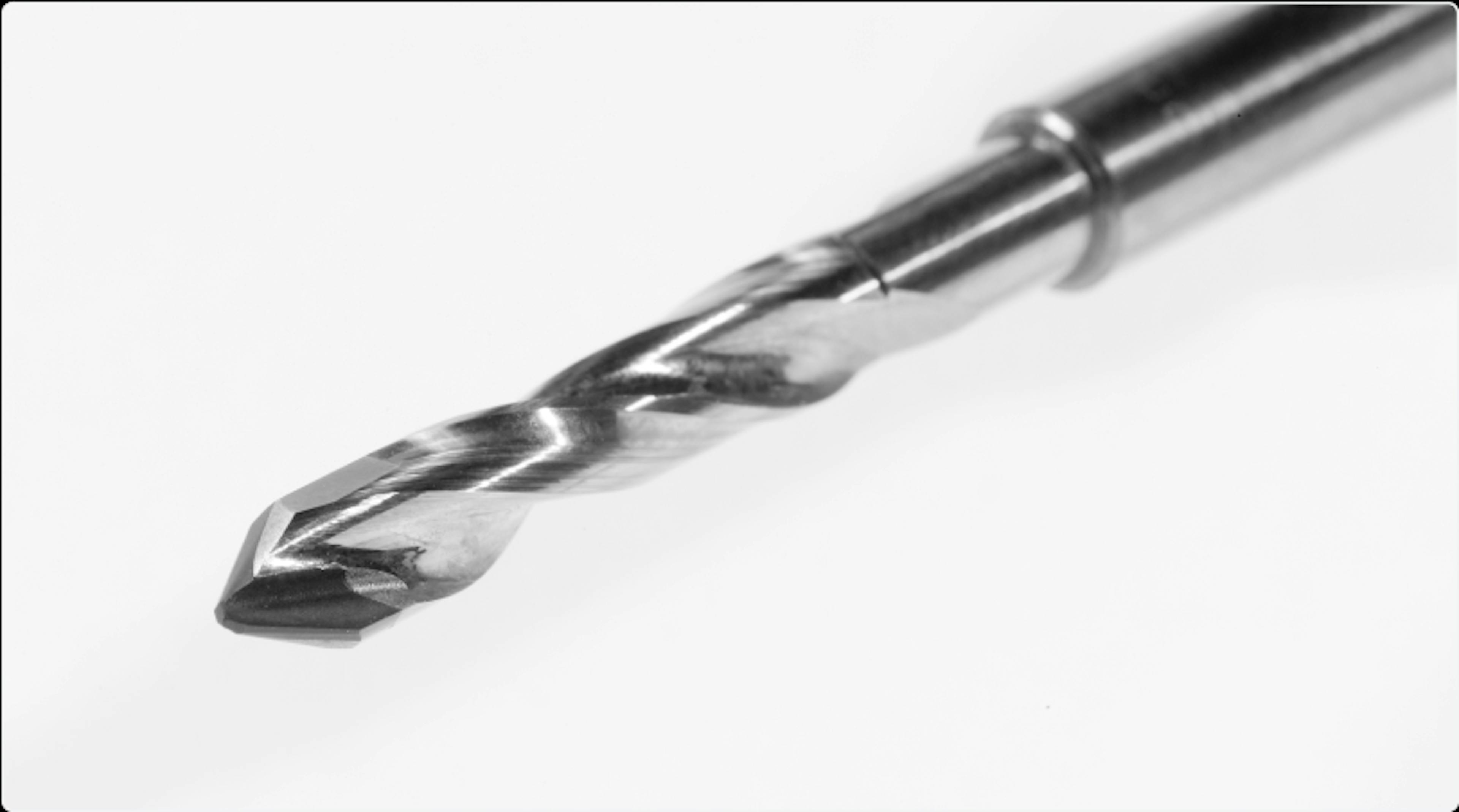

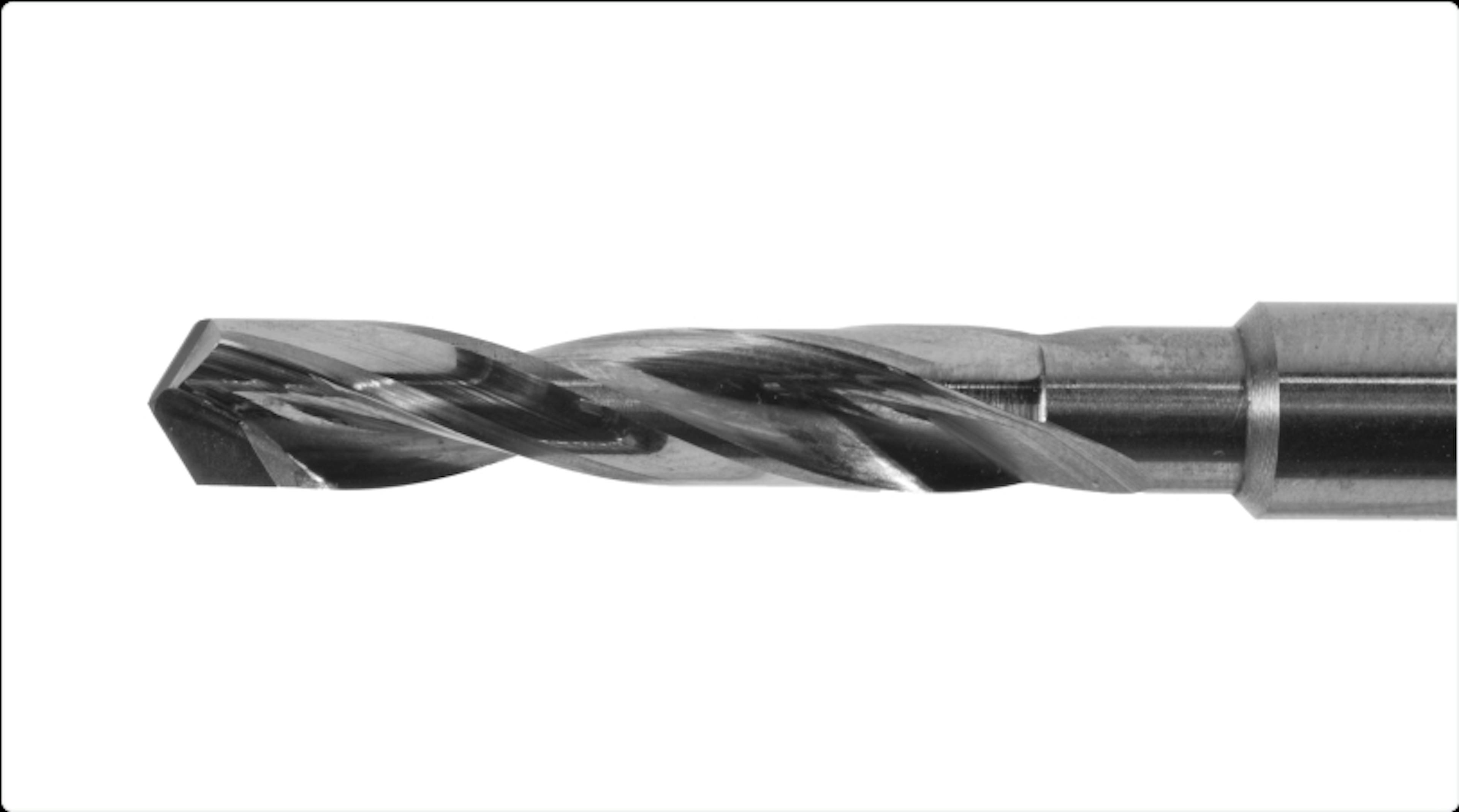

Exactaform PCD Aerospace Drill is an advanced tool specifically designed for Aerospace applications. Its PCD cutting edges offer many advantages, including long tool life, hole accuracy, minimal delamination and minimal burr.
The years of development with this tool have made Exactaform a market leader in CFRP drilling.
| Part number | DIA | FLUTE LENGTH | SHANK DIA | O/All |
| 10149 | 3/16 | 30 | 6h 6 | 100 |
| 10150 | 5.000 | 30 | 6h 6 | 100 |
| 10151 | ¼” | 30 | 8h 6 | 100 |
| 15152 | 6.000 | 30 | 8h 6 | 100 |
| 15153 | 5/16" | 40 | 10h 6 | 100 |
| 15154 | 8.000 | 40 | 10h 6 | 100 |
All drill tolerance: +0.00/-0.010mm
